BlazeCut T050ES-E

$272.00 USD

The TxxxES-E units comes with a Single Pole, Single Throw pressure switch installed.  While the unit is pressurized the switch is open.  When the unit discharges the switch closes completing a circuit.  Pair these with our AWB012 for a simple, 12v audible and visual panel mount alarm.  You can also incorporate the switched units into relays and custom wiring to achieve your goals.

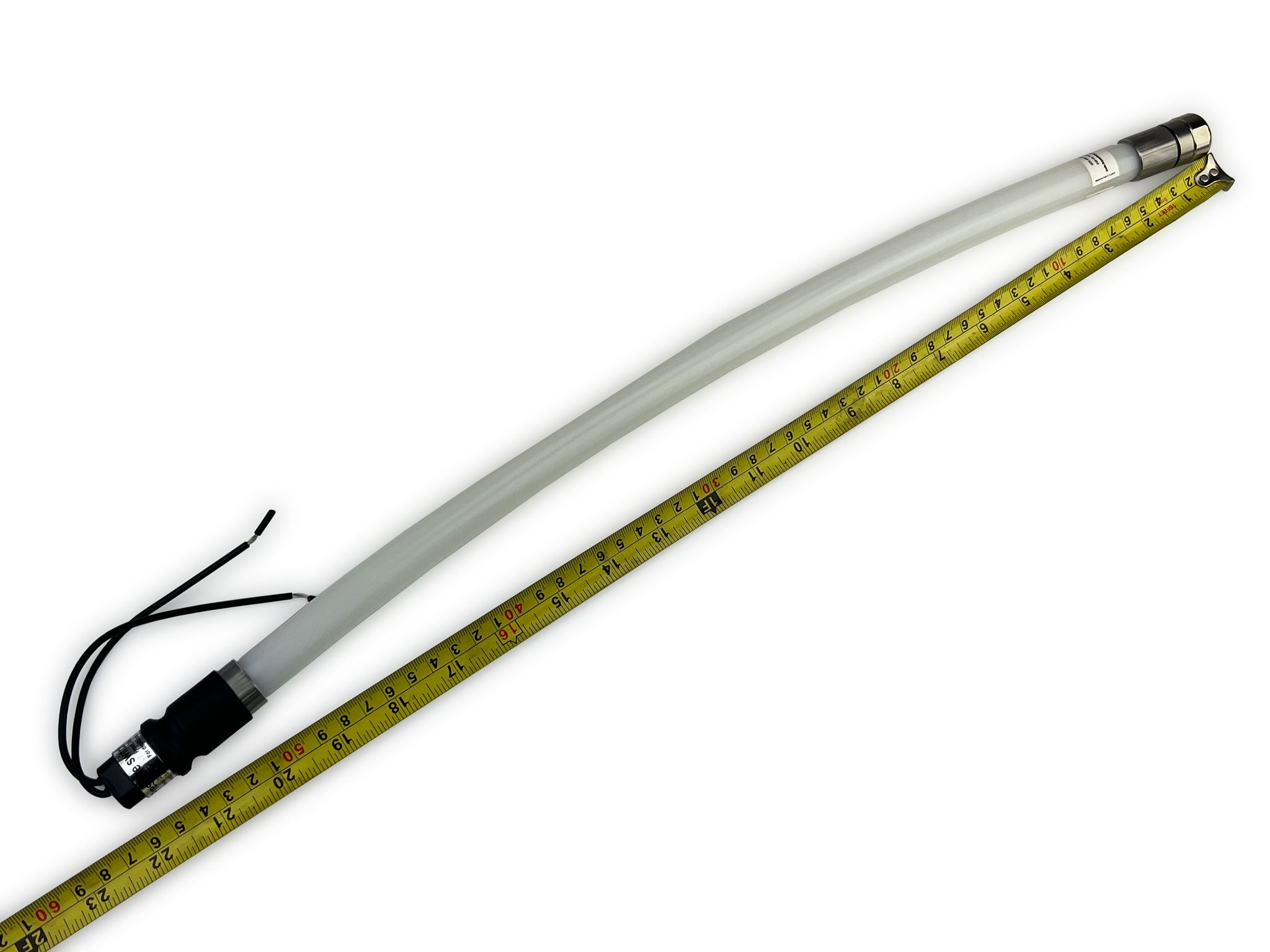

Unit length 21"

Protected enclosed space:

  • 0.14-0.23 cubic meters electrical applications
  • 0.11-0.18 cubic meters engine/fuel applications

Operating Temperature: -40°F to +194°F

Activation Temperature: 221°F

Activation Pressure: 348 psi ± 14 psi

Clean Agent: HFC227ea

Amount of Agent: 0.22 lb ± 0.07 oz
